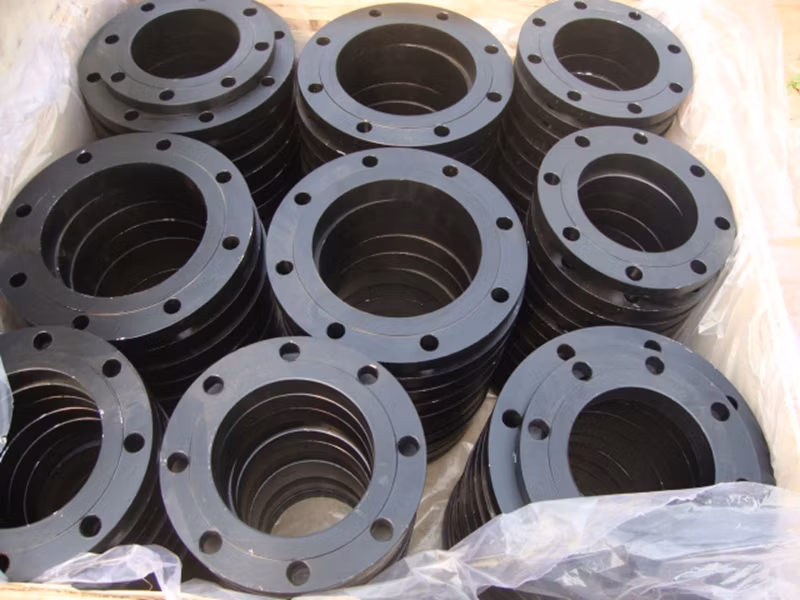

Descripción de Producto
| Los elementos | La placa, la soldadura en el cuello, resbalar, ciego, solapada de toma de la soldadura, brida roscada, etc... | |
| Standard | ANSI | ANSI B16.5, ASME B16.47 serie A/B |
| DIN | Alemania 6 bar, de 10 bar, bar 16, 25, 40 de la barra de bar | |
| GOST | GOST 12820/12821/12836 | |
| EN1092-1 | EN1092-01/05/11/12/13 | |
| JIS | JIS B 2220-1984, el SK B1503, JIS B 2216 | |
| BS4504 | BS4504 BS10 Mesa D/E | |
| Material | ANSI | CS105, una S235, Acero de 20; SS 304/304L 316/316L |
| DIN | CS RST37.2, S235JRG, P245GH, P250GH; SS 304/304L 316/316L | |
| GOST | CS acero de 20, 16mn, Q235. | |
| EN1092-1 | CS RST37.2, S235C22.8 JRG | |
| JIS | SS400, SS 304/304L 316/316L | |
| BS4504 | CS RST37.2, S235JRG, C22.8; SS 304/304L 316/316L | |
| La presión | ANSI | Clase 150, 300, 600, 900 de 1500, 2500lbs |
| DIN | PN6, la NP10 PN16, la NP25 PN40 | |
| GOST | PN6, la NP10 PN16, la NP25 PN40, la NP63, la NP100 | |
| EN1092-1 | PN6, la NP10 PN16, la NP25 PN40, la NP63, la NP100 | |
| JIS | 5K, 10K, 16K, 20K, 30K, 40K | |
| BS4504 | PN6, la NP10 PN16, la NP25 PN40 | |
| El tamaño | ANSI | 1/2" - 80" |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN1092-1 | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS4504 | DN15-DN2000 | |
Composición química(%) | |||||||||
El grado | C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 304 | ≤0, 07 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 03 | 18.00~20.00 | 8.00~10.50 | - | |
| 304L | ≤ 0.030 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 03 | 18.00~20.00 | 9.00~13.00 | - | |
| 310S | ≤0, 08 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 03 | 24.00~26.00 | 19.00~22.00 | - | |
| 316 | ≤0, 08 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |
| 316L | ≤0, 03 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |
| 321 | ≤0, 08 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 03 | 17.00~19.00 | 9.00~13.00 | - | |
| 2205 | ≤0, 03 | ≤1, 00 | ≤2, 00 | ≤ 0.030 | ≤ 0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |
| 2507 | ≤0, 03 | ≤0, 08 | ≤1, 20 | ≤0, 035 | ≤ 0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |
| 904L | ≤0, 02 | ≤1, 00 | ≤2, 00 | ≤0, 045 | ≤0, 035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 |
INCONEL 028 | ≤0, 03 | ≤1, 00 | ≤2, 50 | ≤ 0.030 | ≤ 0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 |
MONEL 400 | ≤0, 30 | ≤0.5 | ≤2, 00 | - | ≤ 0.024 | - | ≥ 63, 0 | - | ≤34.0 |
INCONEL 800 | ≤0, 10 | ≤1, 00 | ≤1, 50 | - | ≤ 0.015 | ≤23.0 | ≤35 | ||
